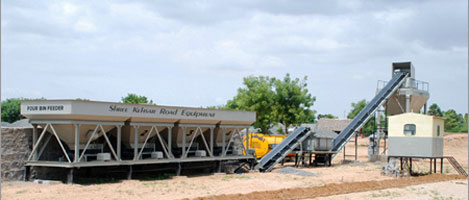

Wet Mix Macadam Plant

Wet Mix Macadam Plant we offer are considered unrivaled in the domestic and international markets. These are the latest form of Wet Mix Plant which is much more advanced in terms of mechanism and performance. Shree Keshar Enterprise is regarded among the reputed Macadam Plant Manufacturers and Suppliers in India.

STATIONARY WET MIX MACADAM PLANT MODEL

• WMM-60 : CAPACITY 60 TONS/HOUR
• WMM-100 : CAPACITY 100 TONS/HOUR
• WMM-150: CAPACITY 150 TONS/HOUR
• WMM-200: CAPACITY 200 TONS/HOUR

COLD AGGREGRATES BIN FEEDER : FOUR BIN FEEDER with individual 2HP DC Drive with Reduction Gear and Conveyor Belt under each Been and a long Gathering Conveyor for transfer of Material to the Slinger Conveyor.

OVER SIZE REMOVAL VIBRATORY SCREEN : VIBRATORY SCREEN Single Dec For Removal Of Over SIze Material.

SLINGER CONVEYOR : SLINGER CONVEYOR TO Feed material from feeder to PUGMILL unit and a load cell for weighing of Aggregrate.

PUGMILL UNIT : PUGMILL MIXING UNIT Designed to Mix Material with a Gob Hopper with Power Pack unit to discharge the Material into Transfer Vehicle.

LOAD OUT CONVEYOR : LOAD OUT CONVEYOR With A Gob Hopper with Power pack unit to Discharge the Material into Transfer Vehicle.

WATER TANK : 10000N Ltrs. TO 20,000 Ltrs. Water Tank With Water Pump and Flow Meter.

CONTROL PANEL : Automatic AC and DC CONTROL PANEL board with for operation of plant (without AC and cables).

CONTROL CABIN : Air Conditioner Filtted Centralized Insulated Control Cabin for SEE all Plant's Operation.

Note : If cement supply SILO required, extra cost will be charge as per your desired tonns storage capacity SILO.

Scope of supply for the Brought out Items :

• All AC motor will be reputed Standards ISO/IST make.
• All DC motor from reputed Standards ISO/IST make.
• All Conveyer Belts will be reputed Standards ISO/IST make.
• Main Gearbox will be from reputed Standards ISO/IST make.
• SMSR Gears wil be reputed Standards ISO/IST make.
• AC+DC mimic Type having Thyristor Control & Printer interface pot control panel will be from reputed Standards ISO/IST make.
